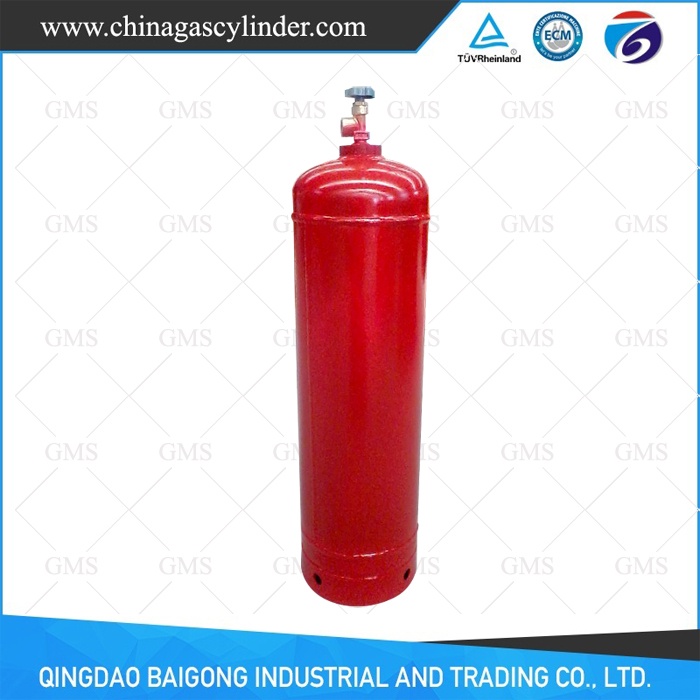

Product name : 40L Dissolved Acetylene Cylinder
 Enlarge Image                   Back
←[Previous Product]


Details:

Porous mass calcium silicate of dissolved acetylene cylinders are widely used in the fields of cutting,welding,illumination,chemical analysis,military projects and so on.There are advantages of safety, energy conservation,convenience, little pollution so and ao fourth.

Our products are welded by high grade and low alloy steel plate ,cylinders are filled with porous mass calcium silicate material.Our products adopt unique techniques,the quality is controled precisely.The products have the advantages of high porosity,much filling gas and so on.The acetylene cylinders produced by our company have the stable quality,safe economy.They are well received by customers

Our products are welded by high grade and low alloy steel plate ,cylinders are filled with porous mass calcium silicate material.Our products adopt unique techniques,the quality is controled precisely.The products have the advantages of high porosity,much filling gas and so on.The acetylene cylinders produced by our company have the stable quality,safe economy.They are well received by customers.

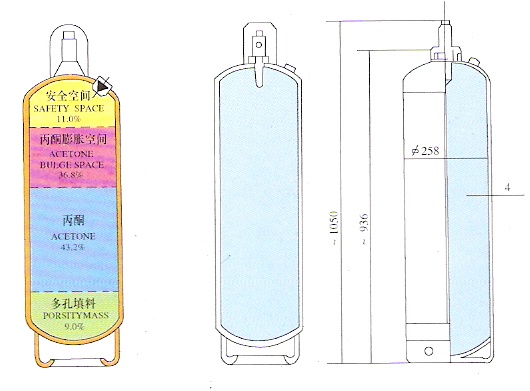

Nominal Capacity

40L

Nominal Diameter

250mm

Limited Filling Pressure(15c)

1.52Mpa

Hydrostatic Test Pressure

5.2Mpa

Air Test Pressure

3 Mpa


Material properties

Compressive Strength

1.8N/mm2

Porosity

90~92%

Volume Density

270g/L

Shoulder Axia Gap

2.5mm

Solvent

acetone

Filling Gas Quantity

About7.2kg approx7.2kg

Environmental Temperature

          under 40

The main technical targets
1、Material Porosity:90~92%
2、Material Volume Density:≤270g/L
3、Material Compressive Strength:≥1.8N/mm2
4、Fusible Alloys Operating Temperature:100±5℃



Pass the followed tests
1、falling and tempering test
2、analogue fire test
3、water bath.heating-up test
4、operation performance test
